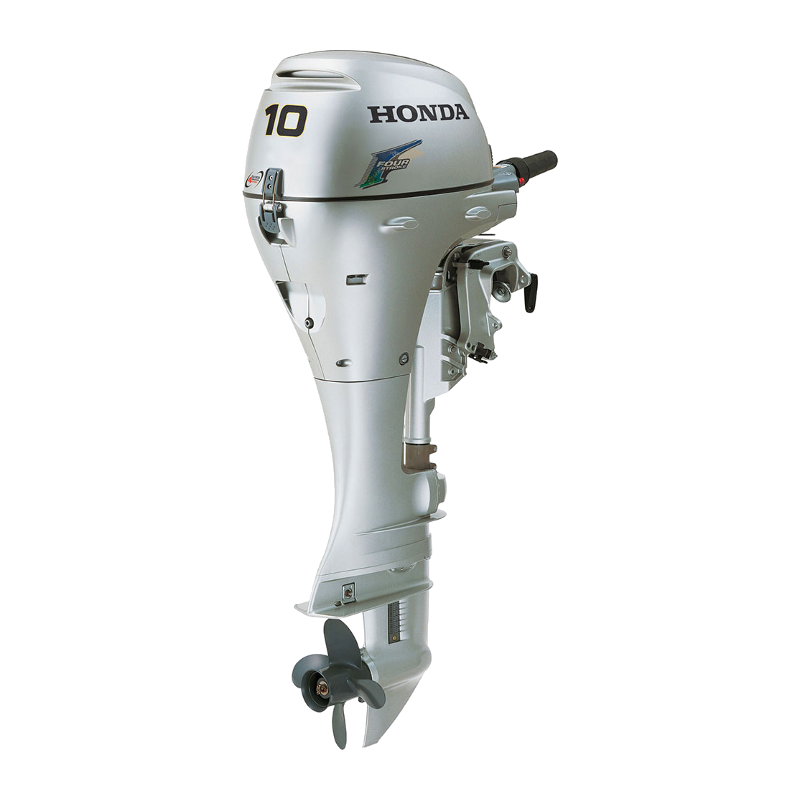

Honda BF10DK2 LHSU - 10 HP, 4-stroke outboard motor, long transom

lei15,100.00
Tax included 1-3 days

The Honda BF10DK2 is a 4-stroke, 10 horsepower (7.4 kW) portable outboard motor, often used for small boats, inflatables, or as an auxiliary motor for sailboats. It features a 222 cc twin-cylinder engine and is available in short (15-inch/433 mm) and long (20-inch/563 mm) shaft configurations. With battery start.

Quantity
In Stock



Delivery policy



Return policy



Security policy

Engine Type: 4-Stroke SOHC, 2 Cylinder, 4 Valves

Displacement: 222 cm³ (13.5 cid)

Bore x Stroke: 58 mm x 42 mm

Rated Power: 10 hp (7.4 kW) at 5,000–6,000 RPM

Fuel System: Carburetor with Accelerator Pump

Ignition System: Electronic PGM-IG (Programmed Ignition)

Cooling System: Water Cooled with Thermostat

Lubrication: Wet Sump

Exhaust System: Through Propeller Hub

Performance and Operation

Gear Ratio: 2.33:1

Gear Shift: F-N-R (Forward-Neutral-Reverse)

Trim/Tilt Range: 5 Stage Manual Trim (4°, 8°, 12°, 16°, 20°) and 72° Tilt

Starting System: Manual (Recoil) and Electric

Steering: Tiller (Handle)

Dry Weight: Approx. 42 kg (92.6 lbs) for Short Shaft (SHU/SHSU); 44.5–48 kg for Long Shaft (LHU/LHSU/LRU)

Transom Height: 433 mm (17.0 in) for S-type; 563 mm (22.2 in) for L-type

Overall Width: 345 mm

Features and Capacities

Alternator: 12V / 6A (76W) or 12V / 12A (151W) depending on model

External Fuel Tank: Included, usually 12.5 liters (3.3 US gal)

Engine Oil Capacity: 1.3 Liters (1.0 L without filter change)

Safety System: Oil pressure alert, Rev-limiter, Overheat protection

BF10DK2 LHSU

Data sheet

Engine type
Petrol 4 stroke
Start type
Battery start
Warranty
24 luni persoane fizice/ 12 luni persoane juridice
Power
10HP
Transom height
Long
Alternator
Yes
